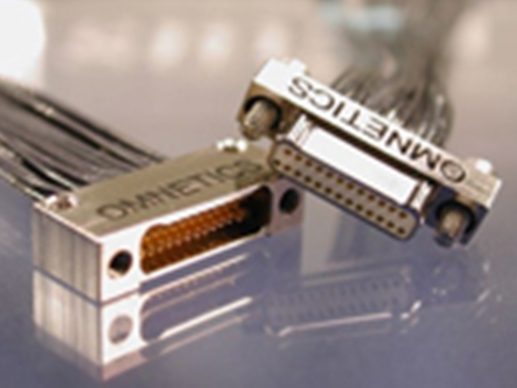

Dual Row Bi-Lobe® Nano-D Connectors (male)
Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 9 through 65 positions, as well as custom configurations.
- Bi-Lobes® Dual Row Horizontal SMT (Type AA)
- Bi-Lobes® Dual Row Vertical SMT (Type VV)
- Bi-Lobes® Dual Row Straight Tails (Type DD)
- Bi-Lobes® Dual Row Thru-Hole Horizontal (Type H4)
- Bi-Lobes® Dual Row Thru-Hole Vertical (Type V4)
- Bi-Lobes® Dual Row Flex Mount (Type FF)
- Bi-Lobes® Dual Row Pre-Wired (Type WD)
- Bi-Lobes® Dual Row Jumpers (Type JU)
- Bi-Lobes® Dual Row Savers
- Bi-Lobes® Dual Row MIL-DTL-32139-QPL
Electrical Mechanical Specifications
- Temperature: -55°C to 125°C (200°C with HTE)
- Durability: 200 Mating Cycles min*
- Insulator Resistance: 5000 Meg ohms min
- Voltage Rating (DWV): 250 VAC RMS Sea Level
- Shock: 100 g`s discontinuties > 10 nanosecond
- Vibration: 20 g`s discontinuties > 10 nanosecond
- Thermal Vacuum Outgassing: 1.0% max TML, 0.1% max VCM
- Contact Resistance: 71 mV Drop @ 1 Amp
- Current Rating: 1 Amp per contact
- Mating/Unmating Force: 7oz. (198g) max per contact
Material Specifications
- Shell Material and Finish:
Aluminum Shell, Electroless Nickel Plated
Aluminum Shell, Black Anodized
Aluminum Shell, Cadmium Plated
Titanium Shell, Unplated
Stainless Steel Shell, Passivated - Insulator: Liquid Crystal Polymer
- Pin: Gold Plated BeCu
- Insulator: LCP per MIL-DTL-83513 or PEEK
- Socket: Gold Plated Copper Alloy
- Encapsulant: Epoxy
