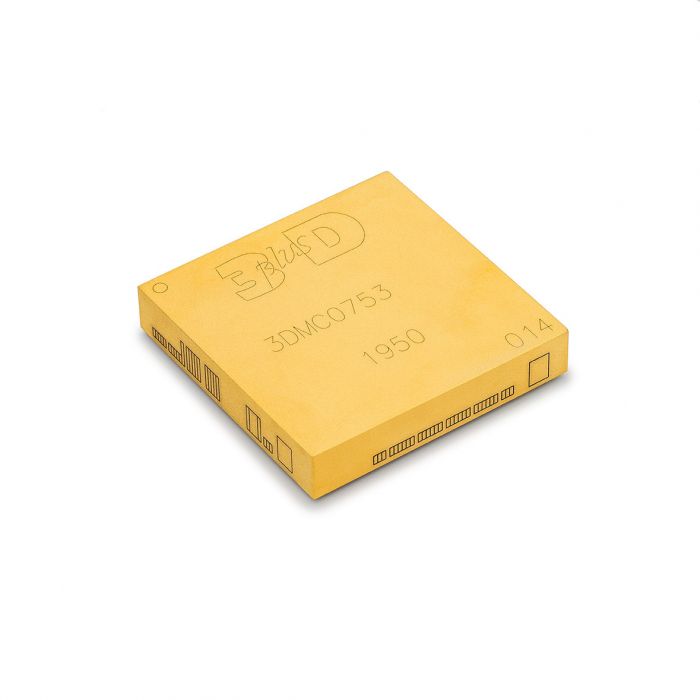

Fusio RT Basic (3DMC0753)

Categories: RAD HARD / RAD TOLERANT, Computer Cores Brand: 3D Plus

This solution procures several key benefits:

NX1H35AS© : NG Medium Space European FPGA
STM C65-space Process technology
Leading Edge European FPGA
Significant board area reduction for customers designs
High Modularity (Pinout compatible with all FUSIO RT Family)
Proven radiation hardened design
Available with screening option for high reliability application

128 Mbit SPI NOR Flash Configuration memory with:

Integrated Triple Modular Redundancy (TMR) and Power Switch
Enhanced SEU and TID performances

More Features

Power Supply: 1.2V, 2.5V, 3.3V
Configuration banks supplies: 2.5V, 3.3V
483 pins module, 263 Multi-Standards users I/Os

High level of miniaturization : 483 ball BGA, 32 x 32 mm² area, max. module weight = 14.5 g

Temperature Range: -40°C to +105°C

Radiation Tolerances:

TID = 40 krads
SEL immune up to LET > 60 MeV.cm2/mg

FUSIO RT BASIC Configuration: 3DMC0753

NG Medium Space European FPGA : NX1H35AS©
Integrated TMR non-volatile Flash NOR SPI memory of 128 Mbit each
BGA pitch = 1.27 mm
483 pins module, 263 users I/Os

Additional Configurations:

FUSIO RT FULL Configuration: 3DMC0752
FPGA + TMR FLASH NOR + FLASH NAND + SDRAM
FUSIO RT 3L NAND Configuration: 3DMC0754
FPGA + TMR FLASH NOR + FLASH NAND (64 Gb)
FUSIO RT 3L SDRAM Configuration: 3DMC0755
FPGA + TMR FLASH NOR + SDRAM (2 Gb)

Description

The 3DMC0753 FUSIO RT BASIC is the basic configuration of a Computer Core integrating a space grade SRAM based FPGA together with its configuration memory.
