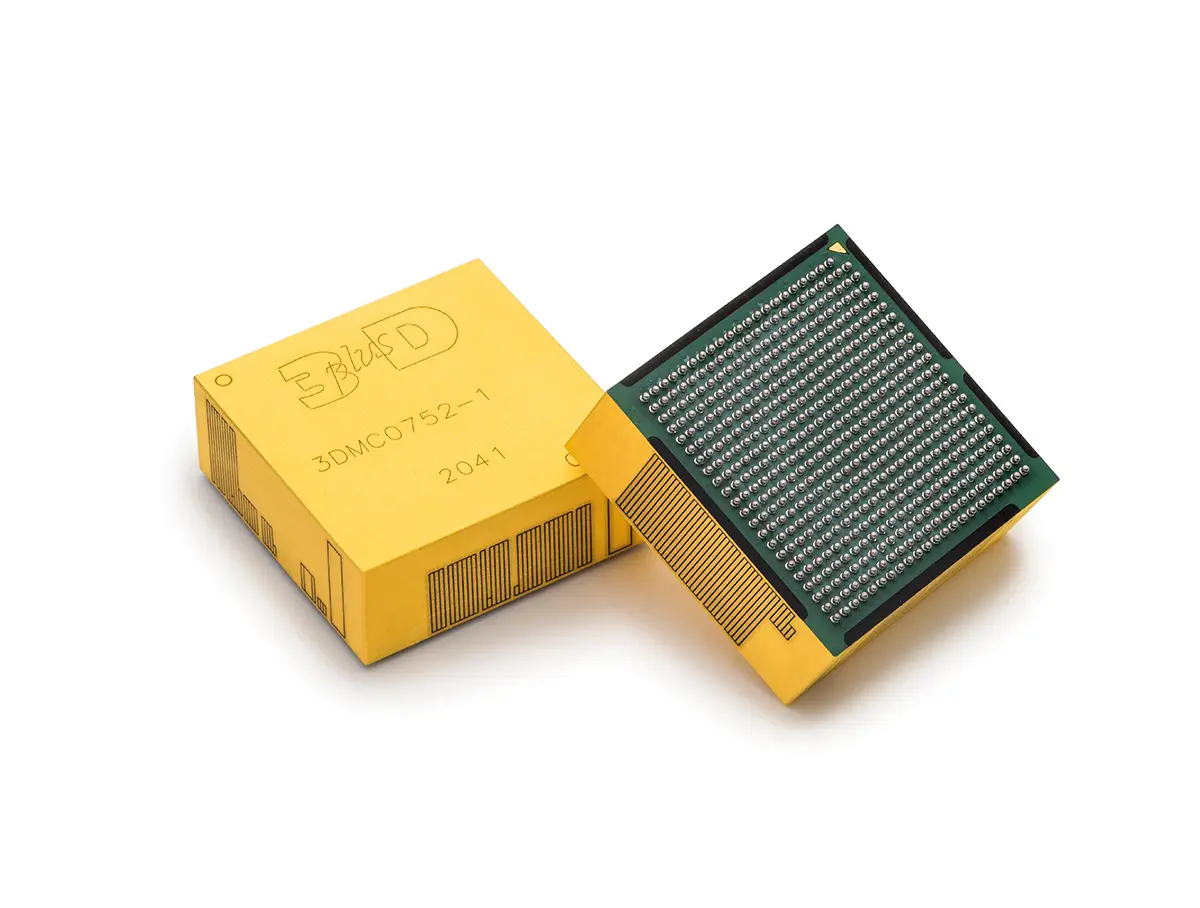

Fusio RT Full (3DMC0752 – 3DMC0753 – 3DMC0754 – 3DMC0755)

Categories: RAD HARD / RAD TOLERANT, Computer Cores Brand: 3D Plus

This solution procures several key benefits:

NX1H35AS© : NG Medium Space European FPGA
STM C65-space Process technology
Leading Edge European FPGA
Significant board area reduction for customers designs
High Modularity (Pinout compatible with all FUSIO RT Family)
Proven radiation hardened design
Available with screening option for high reliability application

More Features

263 Multi-Standards Users I/Os
128 Mbit SPI NOR Flash Configuration memory with integrated TMR and Power Switch for enhanced SEU and TID performances
64 Gbits NAND Flash storage memory
2 Gbits SDRAM computing memory
High level of miniaturization : 483 ball BGA, 32 x 32 mm² area, module weight = 28 g
Temperature Range: -40°C to +105°C

Radiation Tolerances:

TID = 40 krads
SEL immune up to LET > 60 MeV.cm2/mg

FUSIO RT FULL Configuration: 3DMC0752

483 pins module, 263 users I/Os
FPGA + Integrated non-volatile flash NOR SPI memory of 128 Mbit each (triplicated)
64 Gbit NAND Flash memory:

64 Gb (4 x 16 Gb)
Bus width = 32b
Max Frequency = 40 MHz
Max Data Rate = 1600 Mb/s

2 Gbit SDRAM memory :

2 Gb (4 x 512 Mb)
Bus width = 32b
Max Frequency = 133 MHz
MaxData Rate = 4.2 Gb/s

BGA pitch = 1.27 mm

Additional Configurations:

FUSIO RT BASIC Configuration: 3DMC0753
FPGA + FLASH NOR
FUSIO RT 3L NAND Configuration: 3DMC0754
FPGA + FLASH NOR + FLASH NAND (64 Gb)
FUSIO RT 3L SDRAM Configuration: 3DMC0753
FPGA + FLASH NOR + SDRAM (2 Gb)

Description

The 3DMC0754 FUSIO RT 3L NAND is the 3 layers configuration of a Computer Core integrating a space grade SRAM based FPGA with its configuration memory and an additional mass storage memory NAND in one miniaturized module.
