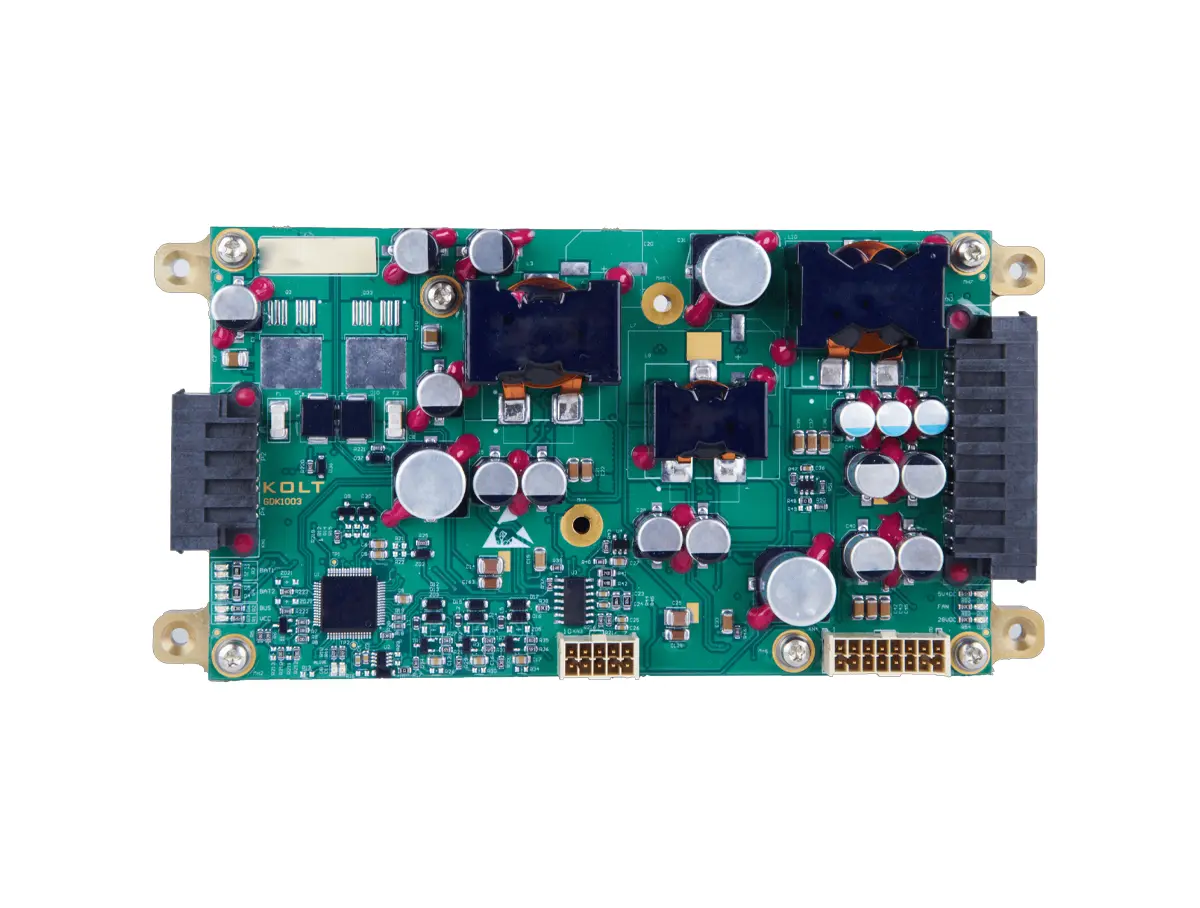

GDK1003 – Non Isolated Multi Output DC-DC Converter Board
- 20-34 VDC Battery Input
- Multiple output configurations
- Outputs can be changed to different voltages
- Adjustable Fan Voltage in 3 Different Levels
- RS422/485 Interface
- High Efficiency
- Baseplate Cooled
Ordering Information
- Family: KMPM00
- Input Voltage: 20-34 V
- Power: 450 W
- Output Voltage: 28 V and 5.4 V
- Package: Custom Module
Screening
- Full LOT traceability
- Optional burn-in testing
- Available with different screening grades
- Final visual inspection
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.
- Operating Temperature: -40 to +85 °C
- Storage Temperature: -40 to +125 °C
Dimensions
- Size: 163 x 82 x 27 mm
- Weight: 390 g
Description
GDK1003 450W DC/DC PoL Converter, feeds two independent batteries and produces different output voltages.
Designed to meet
- MIL-STD-461 (D, E, F)
- MIL-STD-810
