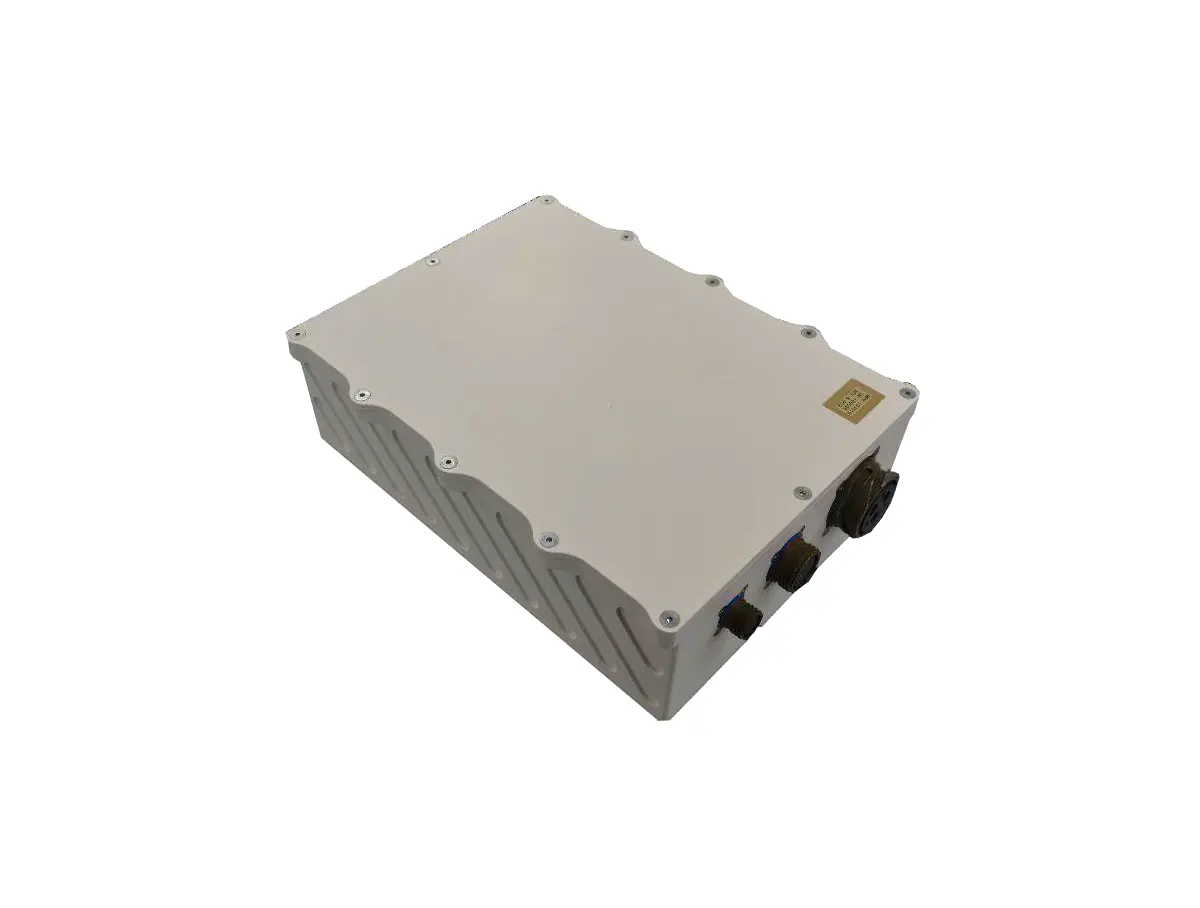

Input Filter and Protection Units
- Lightning protection & EMI filtering across all inputs
- 10 kVA single phase AC input, 85-265 VAC, 47-63 Hz
- 1 Gbps Ethernet connections (x4)
- Phone signals interface (x5)
- Qualified to tracked vehicle vibration (optional feature)
Ordering Information
- Family: KMFL00
- Input Voltage: Single Phase Universal AC
- Power: 50 Amps
- Output Voltage: Single Phase Universal AC
- Package: Enclosed
- : Options: Vibration dampeners, Ground fault circuit interrupter
Screening
- Full LOT traceability
- Optional burn-in testing
- Available with different screening grades
- Final visual inspection
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.
- Operating Temperature: -40 to +50 °C
- Storage Temperature: -40 to +63 °C
Dimensions
- Size: Size: 330 x 230 x 89 mm
- Weight: 6 kg
Description
KMFL00 is very rugged input filter & protection unit.
Designed to meet
- MIL-STD-810G
