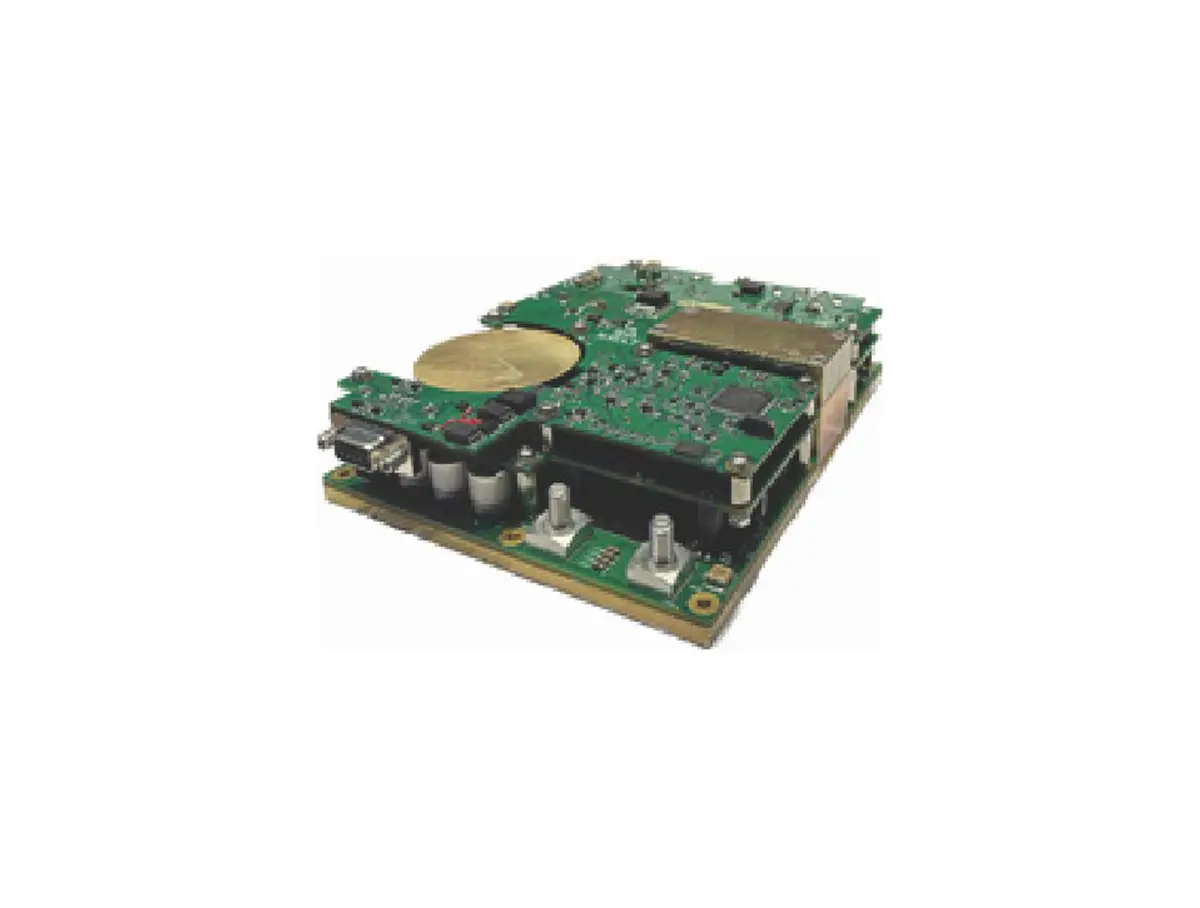

Isolated DC/DC Converter Module

• Wide input voltage range
• High efficiency and high power density
• Baseplate conduction cooled
• RS-485 communication
• Input UV/OV protection
• Output OV protection
• Short circuit protection
• Over temperature protection

Ordering Information

• Family: KMPM01
• Input Voltage: 250-425 VDC
• Power: 1.6 kW, 2.5 kW, 3.5 kW
• Output Voltage: 12 VDC,15 VDC, 28 VDC, 36 VDC, 48 VDC, 270 VDC
• Package: Custom Mode

Screening

• Full LOT traceability
• Burn-in at 85 °C baseplate temperature
• Temperature cycling
• Available with different screening grades
• Final visual inspection

Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.

• Operating Temperature: -40 to +85 °C
• Storage Temperature: -55 to +125 °C

Dimensions

• Size: 167 x 131 x 34 mm
• Weight: 1.5 kg

Description

KMPM01 is a low profile and compact single output isolated DC-DC converter for rugged applications requiring a regulated DC voltage at the output.

Designed to meet

• MIL-STD-461 (D, E, F, G)
• MIL-STD-810
