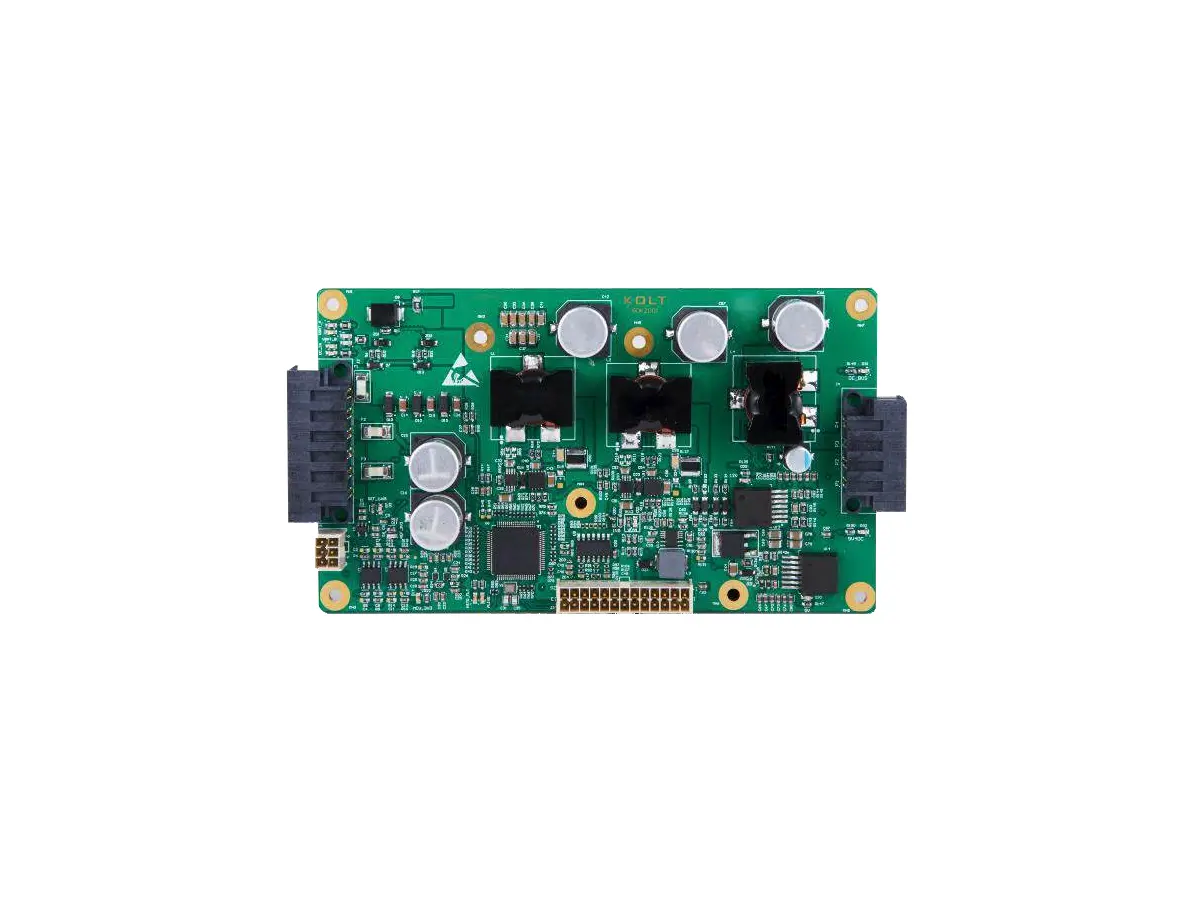

Non-Isolated Bidirectional DC-DC Converter System

Category: Brand:
  • DC Input Simultaneously Charges Battery and Powers DC/DC Regulators
  • Regulated 32 VDC output can be powered via DC Input or BB2590 Battery
  • Uninterrupted Switching to Battery Power when DC Input Removed
  • Built-In-Test (BIT)
  • RS422/485 Interface
  • ON/OFF Switch to Power Down Circuit During Storage
  • Constant Current and Constant Voltage Battery Charge Mode

Ordering Information

  • Family: KMUS02
  • Input Voltage: 20-34 V
  • Power: 240 W
  • Output Voltage: 5.4 V at 5.0 A, 32 V at 5.5 A, 48 V at 0.5 A
  • Package: Custom Module

Screening

  • Full LOT traceability
  • Optional burn-in testing
  • Temperature cycling
  • Available with different screening grades
  • Final visual inspection

Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.

  • Operating Temperature: -40 to +85 °C
  • Storage Temperature: -40 to +125 °C

Dimensions

  • Size: 163 x 82 x 30 mm

Description

KMUS02 Non-Isolated Bidirectional Power Board when supplied with 20-32 VDC input charges BB2590 battery according to the healthiest smart battery charging protocol.

Designed to meet

  • MIL-STD-461 (D, E, F)
  • MIL-STD-810
