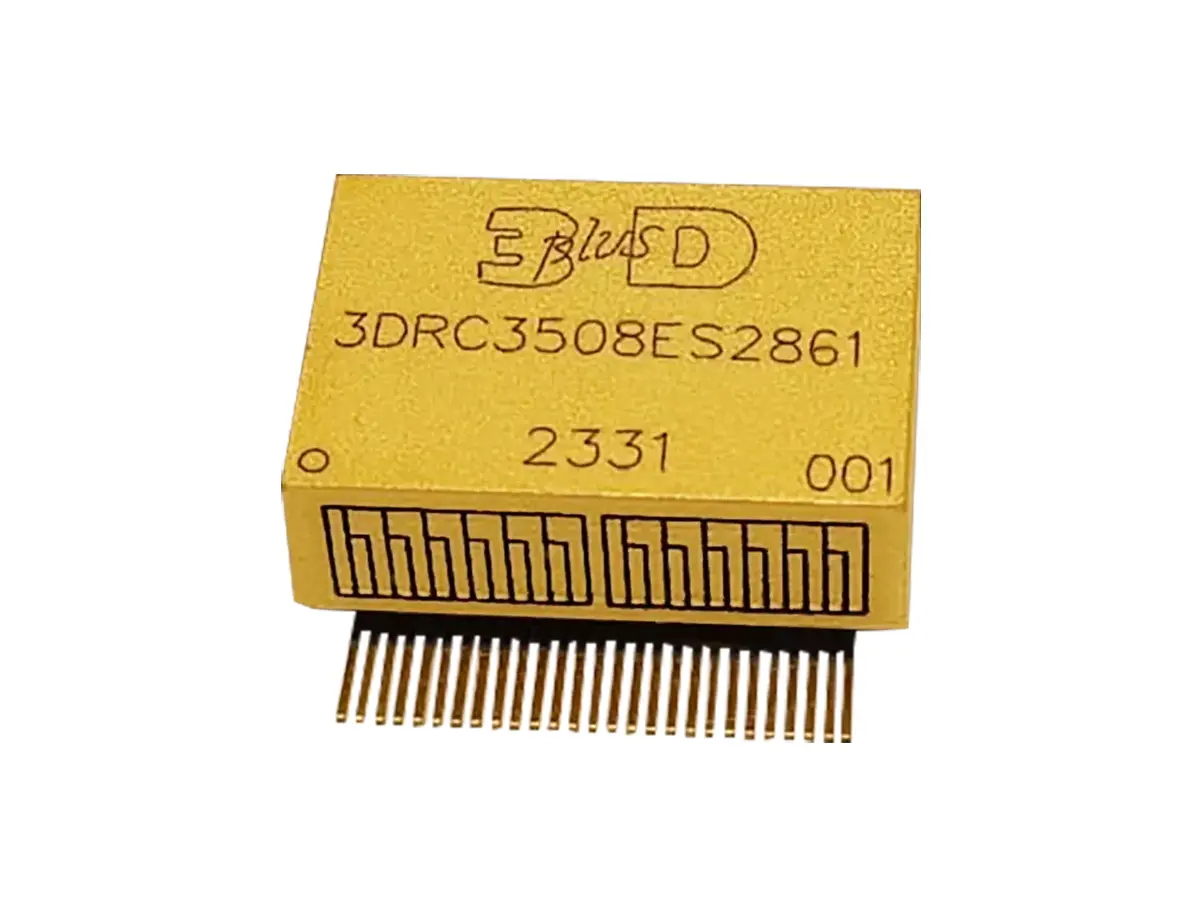

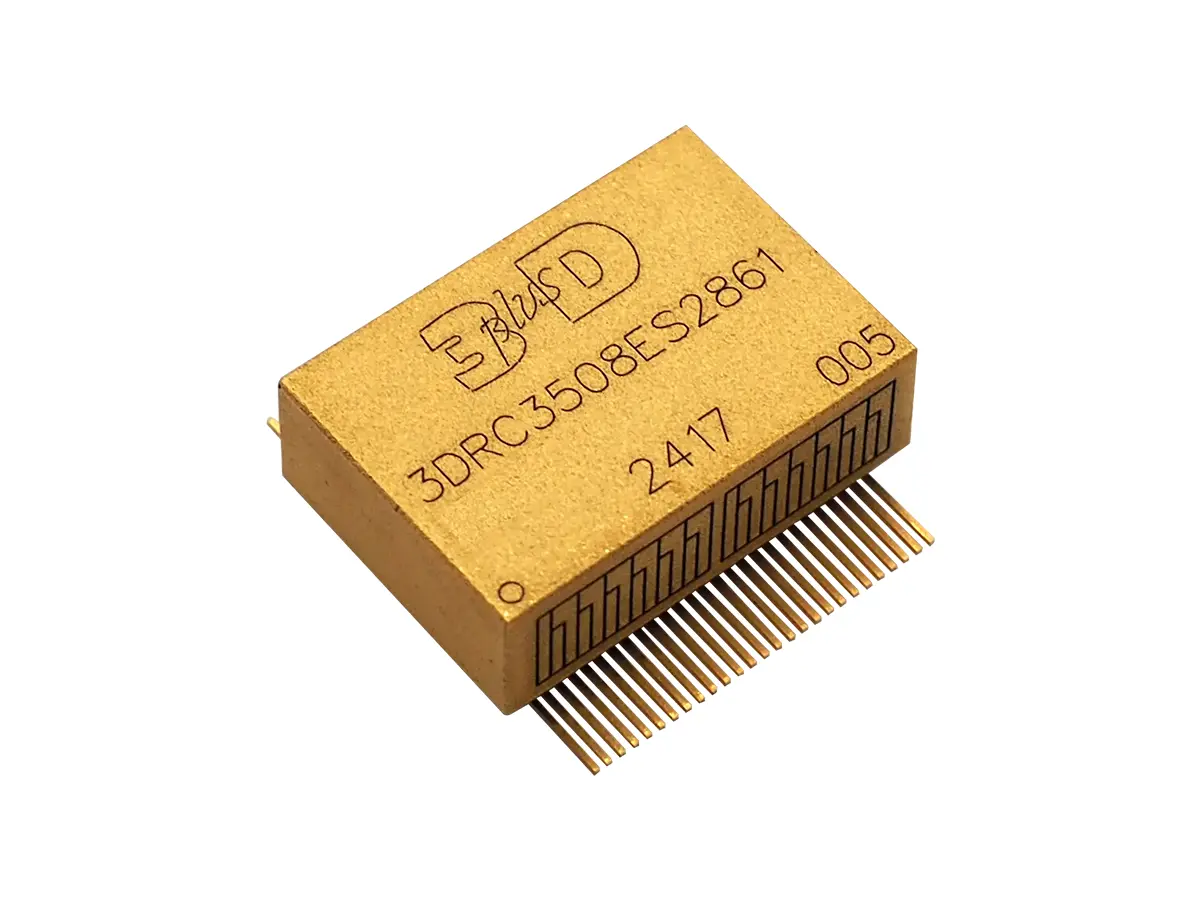

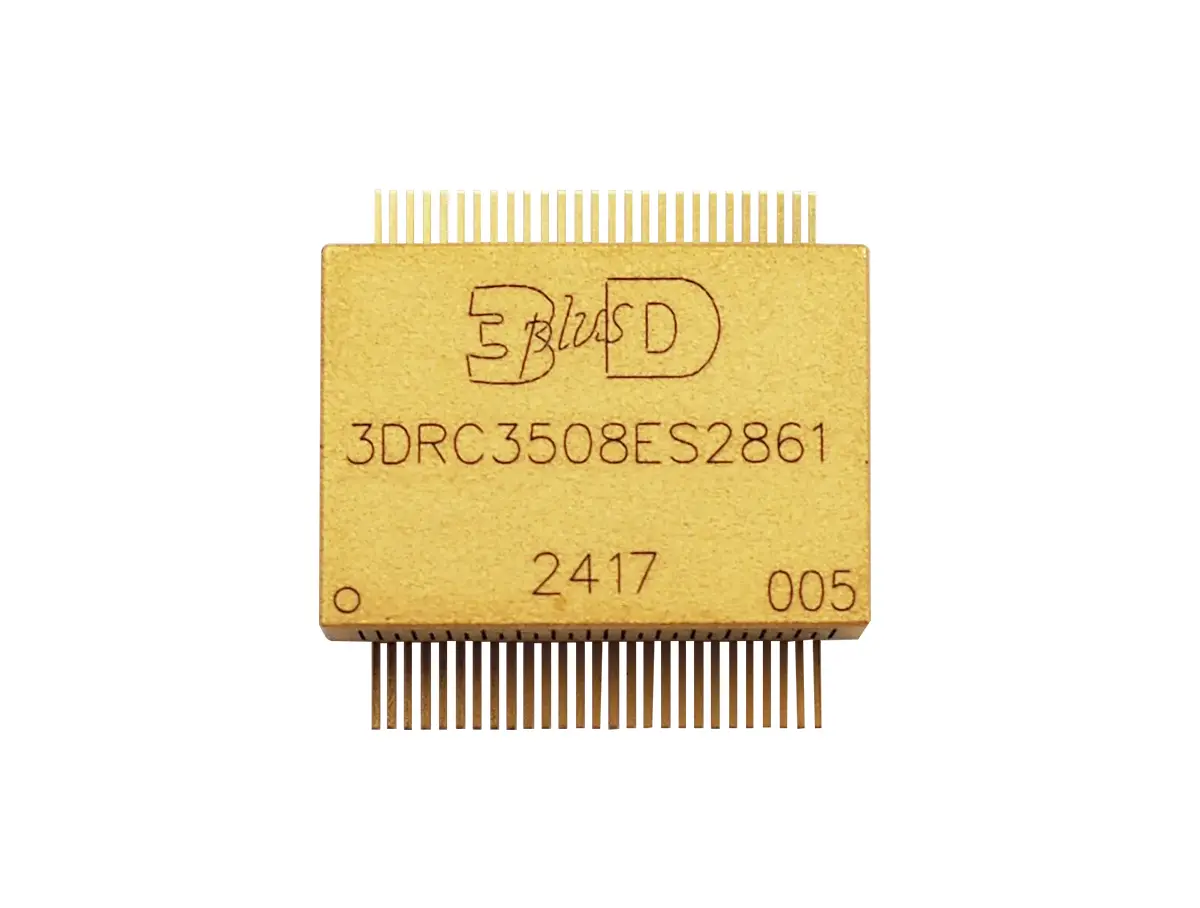

Rad-Hard Majority Voter (3DRC3508ES2861)

• 1.65 V to 5.5 V voltage range
• Input voltage up to 5.5 V at any Vcc
• Provides logic-level down translation to Vcc
• Cold sparing capability
• Internal power-on reset (POR) circuitry
• Power savings & low dissipated power
• 13 ns maximum propagation delay on data at 3.3 V
• Radiation Hardened design
• TID > 30 krad(Si)
• SEL and SET LETth > 74.7 MeV.cm2/mg
• Operating temperature –55°C / +125°C

Description

The 3DRC3508ES2861 is an octal 3-input high-speed Majority Voter with integrated redundancy. Operating across a voltage supply range of 1.65 V to 5.5 V, it offers four dual 3-input voter gates, with individual error outputs.

More information

• Majority Voter – The radiation mitigation solution from 3D PLUS
