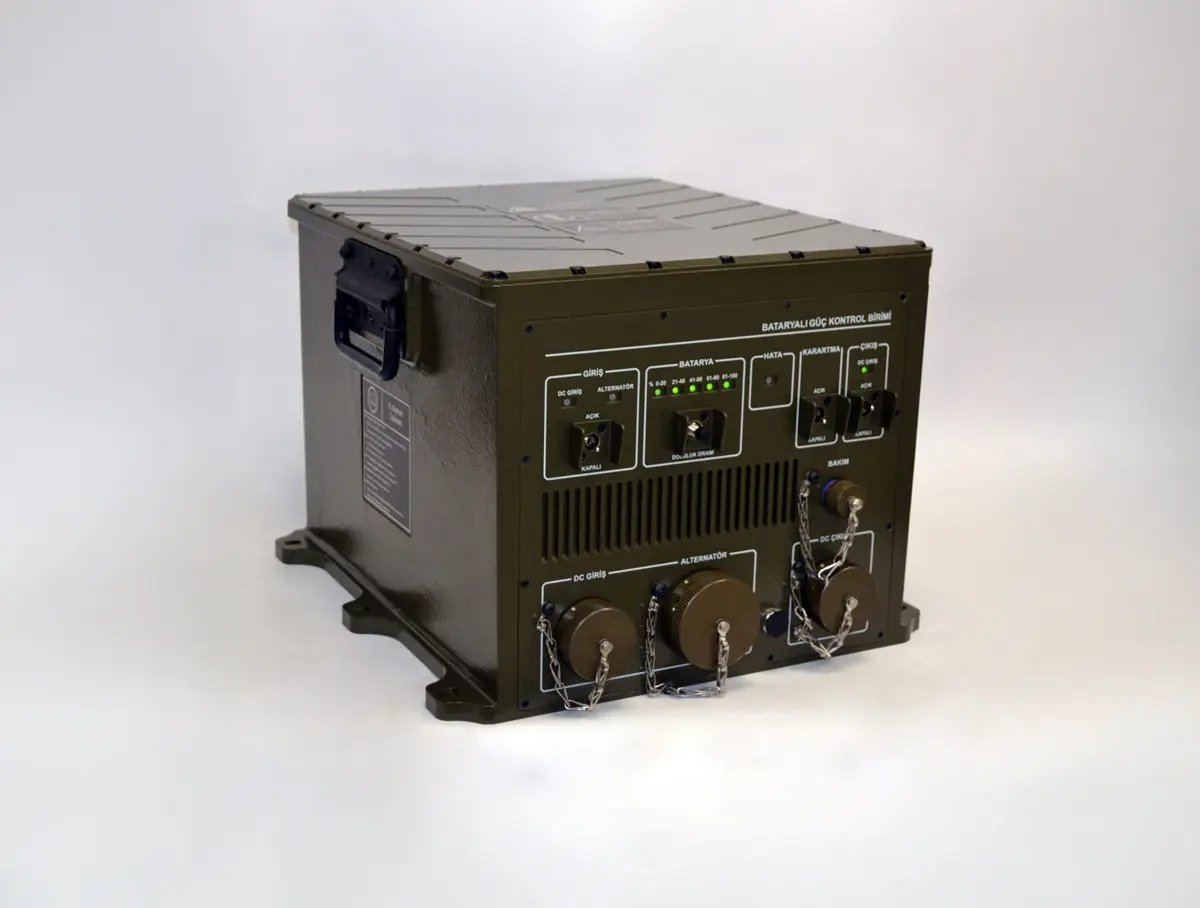

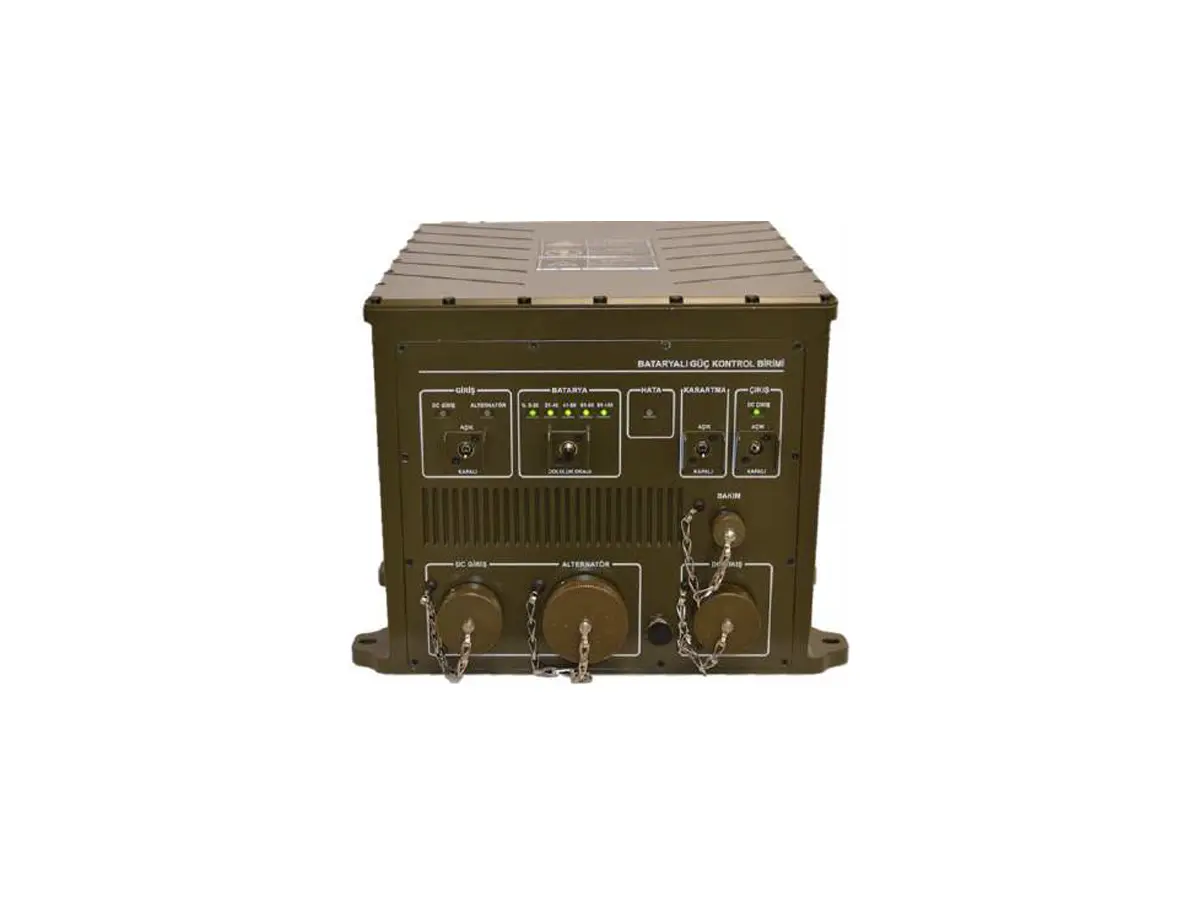

Rugged DC UPS System
- 80 Amps continuous output
- 20-32 VDC Input & 24-29 VDC Alternator Input
- Built-In 6T Li-Ion Battery
- 3 Toggle Switches for Activating DC Input, Dimming Mode and Output
- RS422/485 Interface
- CAN BUS Interface
- 9 Led Indicators for Input, Output, Alternator and Errors
- Push Button for State for Charge (SoC)
Ordering Information
- Family: KMUS01
- Input Voltage: 20-32 V
- Power: 2200 W
- Output Voltage: 20-32 V
- Package: Enclosed Systems
Screening
- Full LOT traceability
- Optional burn-in testing
- Temperature cycling
- Final visual inspection
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.
- Operating Temperature: -30 to +50 °C
- Storage Temperature: -40 to +60 °C
Dimensions
- Size: 273 x 361.4 x 360 mm
- Weight: 34 kg (incl. 120 Ah lit. Battery)
Description
Battery Power Control Unit, can charge the built-in 6T Lithium-Ion batteries via vehicle alternator (24/29 VDC), this unit can be charged by both DC and Alternator Inputs and also can provide power from DC output.
Designed to meet
- MIL-STD-461F
- MIL-STD-1275 (D, E)
- MIL-STD-810
