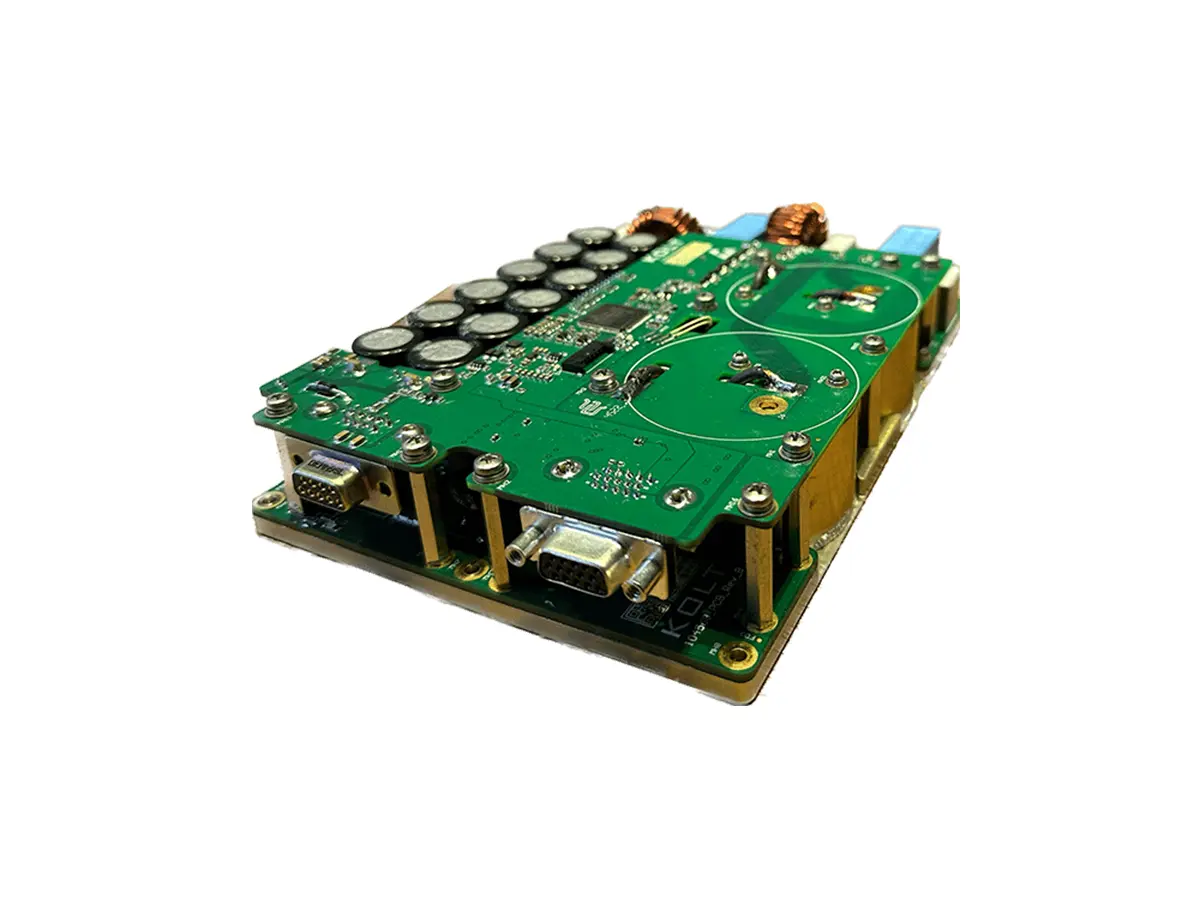

Single Phase PFC (Power Factor Correction) Module

Categories: , Brand:
  • AC-DC Power Factor Correction Module
  • Input frequency range: 47-63 Hz
  • Power Factor > 0.99
  • Up to 3500 W, 8.75 A continuous output
  • Internal input EMI filter
  • Active inrush current limiting
  • Auto-recovery input under/over voltage protection
  • Input current protection
  • Auto-recovery overcurrent protection
  • Auto-recovery short-circuit protection
  • Auto-recovery output over voltage protection

Ordering Information

  • Family: KMPF03
  • Input Voltage: Single Phase Universal 90-265 VAC
  • Power: 1.5 kW, 2.5 kW, 3.5 kW
  • Output Voltage: 400 VDC
  • Package: Custom Mode

Screening

  • Full LOT traceability
  • Burn-in at 85 °C baseplate temperature
  • Temperature cycling
  • Available with different screening grades
  • Final visual inspection

Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.

  • Operating Temperature: -40 to +85 °C
  • Storage Temperature: -55 to +125 °C

Dimensions

  • Size: 201.5 x 131.5 x 38 mm
  • Weight: 1.5 kg

Description

KMPF03 is an AC-DC power factor correction module with a power capacity up to 3500 W that operates from a universal single-phase AC input and generates constant 400 VDC output.

Designed to meet

  • MIL-STD-461 (D, E, F, G)
  • MIL-STD-810
