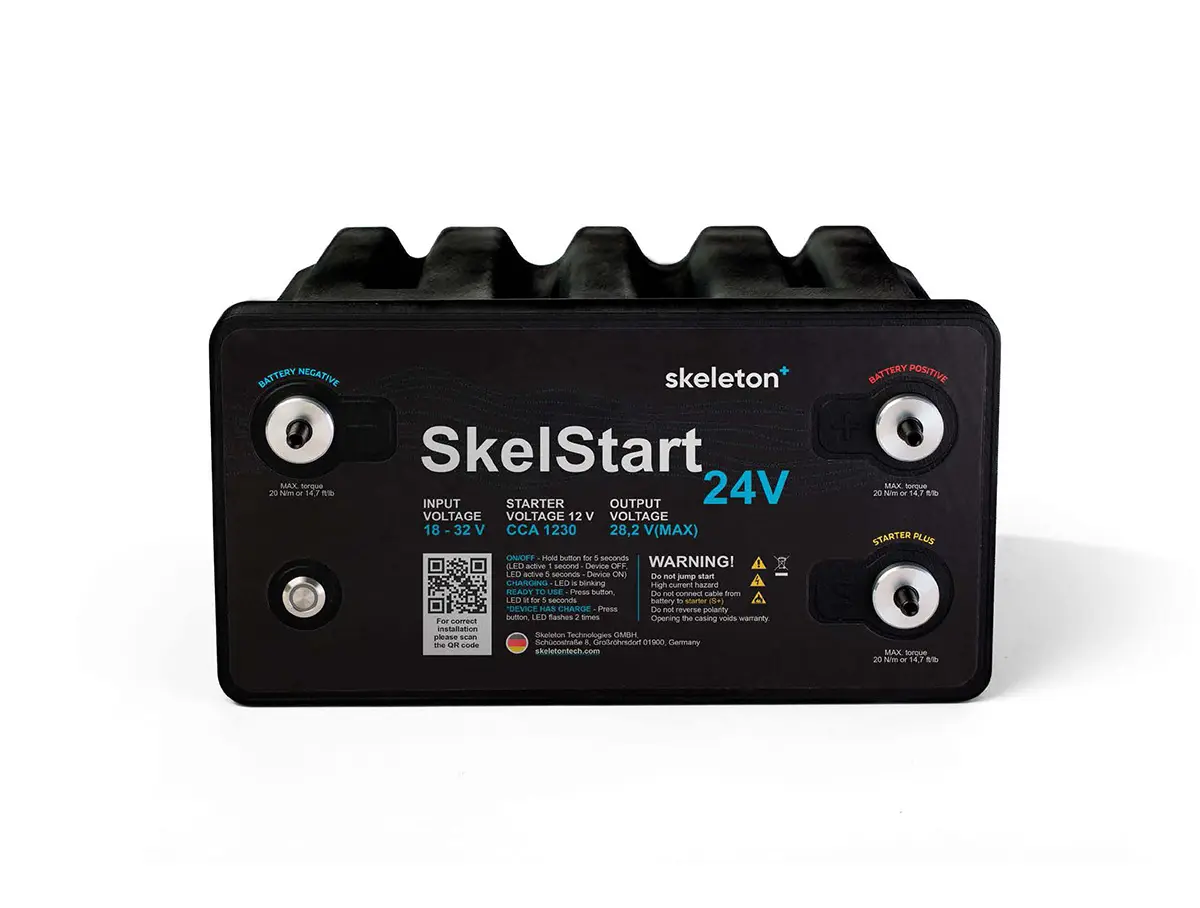

SkelStart Starterbattery – 24V
- High power: 60X the power of batteries
- No downtime: reliable engine starting even with dead batteries
- Long lifetime: 1M+ lifecycles, no maintenance needed
- Works even at -40 OC/F with full efficiency
- Meets MIL standards: Meets all current MIL standards – and others outside MIL
- Cost efficient: In the overall concept than previously used starter batterie / Pays back within one year
- Additional interface: A starter battery with a communication interface is currently under development.
- Cold Cranking Amps (CCA)*: 1230 A
- Maximum Peak Current (1 sec current)**: 2547 A
- Peak Power*: 76.1 kW
- Charged full voltage***: 27 V
- Energy: 37 vH
- Rated Capacitance: 340 F
- Individual Cell Capacitance: 3400 F
- Charging current: 20 (max) A
- Continuous input voltage range: 18-32 V
- Continuous input voltage range with specified charge time: 23-32 V
- Recharge time (from 0 V)***: 10 min
- Operating temperature: -40 to +65 (Deg °C), -40 to +149 (Deg °F)
- Storage temperature: -40 to +50 (Deg °C), -40 to +122 (Deg °F)
- Standby current draw: <10 MA
- Dimensions: 328cm L x 171cm W x 241cm H [12.91 inch L x 6.73 inch W x 9.49 inch H]
- Weight 8.5 kg [18.74 lbs]
Description
The SkelStart Engine Start Module is a supercapacitor engine start module.
