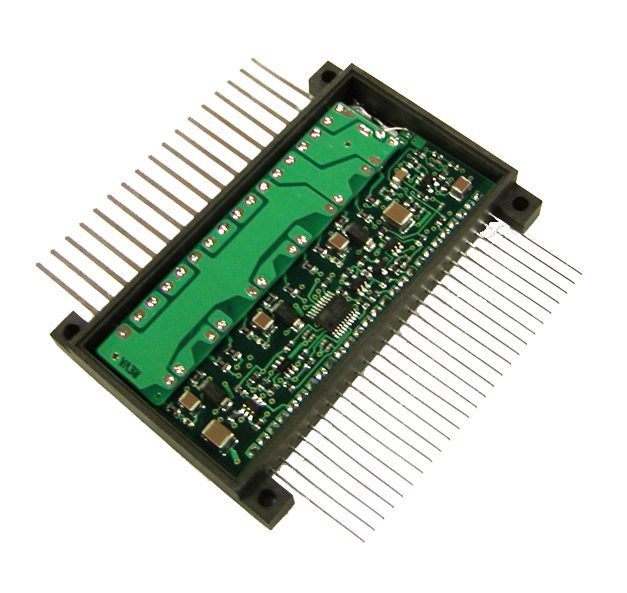

SMCS6 Sensorless 3-Ph./BLDC Motor Controllers

Sensitron’s Motor Control expertise extends the usefulness of electronic technologies, bridging the gap between semiconductor devices and their systems usage. Sensitron’s capabilities include fully Integrated 3-Phase Brushless DC Motor Control Subsystem and Motor Drivers including power stage, non-isolated driver stage and controller stage.

Features & Benefits:

• Speed/velocity controller without Hall sensors
• Configured in 2-quadrant mode
• Tacho output and Current output
• Programmable lead angle for high speed operation
• Direction input to control motor direction
• Programmable cycle by cycle current limiting
• Overvoltage/Coast input for shutdown of all power switches

Sensitron Advantage:

• Complete controller and power stages available
• Wide standard product range to fit most high power motors
• Compact design enables ease of system integration and increased reliability
• Variety of COTS Motor Control Products Availability reduces lead time
• Flexible, Battle-Tested Technology allows for reduced design time
• Efficient electrical and mechanical design optimized for small space/footprint
• Minimal power dissipation and wide-temperature range operation

• Military Ground Vehicles
• Industrial Equipment
• Heavy Duty Vehicles
• Electrical Hybrid Vehicles
• Braking Systems
• Air Handlers
• Lifts and Pumps
• Avionics
• Downhole Drilling/Exploration
• Robotic
