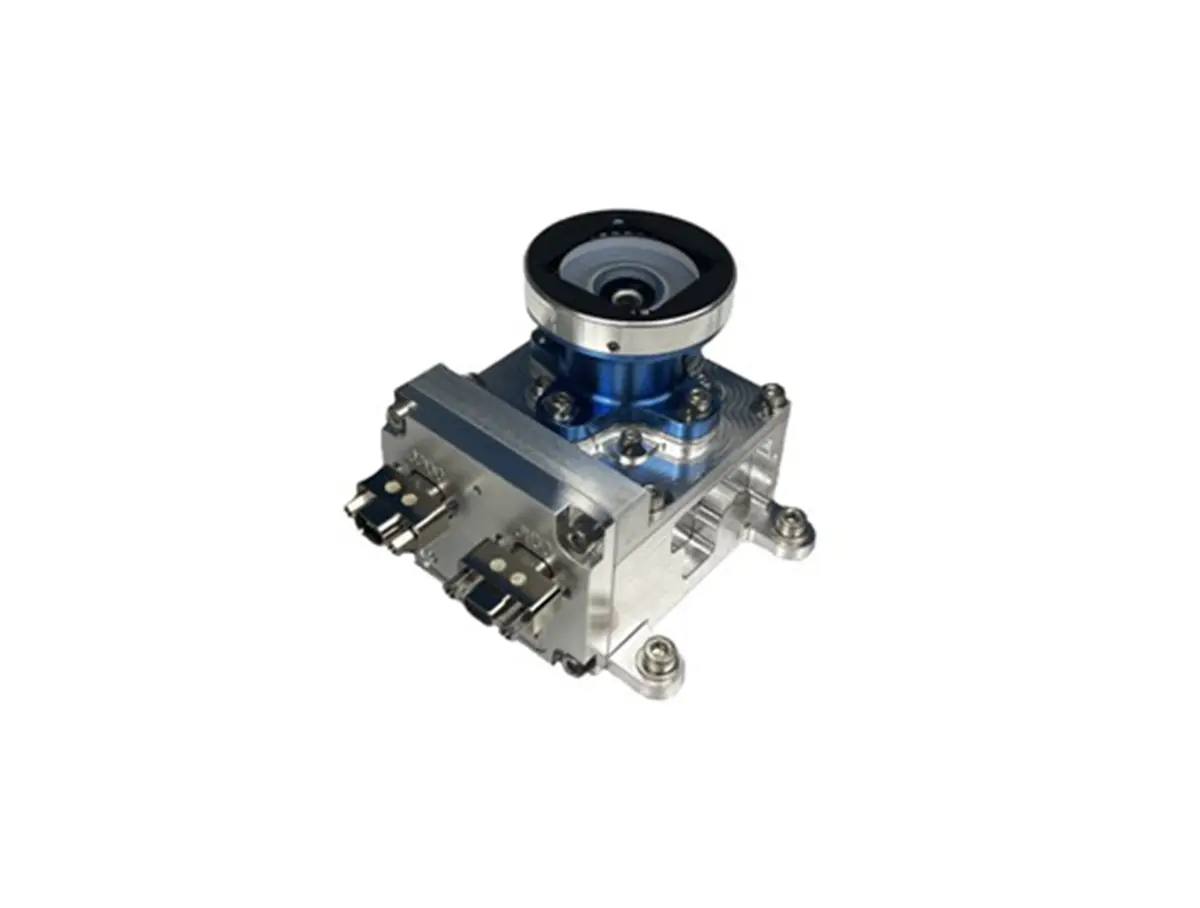

Space Camera Systems IRIS 8mm (3DCS4M 8mm)
- 4 Mpixels CMOS Camera Module (Mono or RGB)
- Wide Angle Objective
- TID 30 krad for the electronics,
- SEL immune up to LET > 60 MeV.cm2/mg
- Operating Temperature Range: -40°C to +70°C
- 4 Mpixels CMOS Camera Module (Mono or RGB)
- 2048 (H) x 2048 (V) active pixels (5.5 μm)
- Read noise : 13e-, Full Well Capacity > 11ke-
- Spectral Response: 400-750 nm
- Integrated processing and storage memories
- Two MDM 9 pins connectors
- One Standard SpaceWire connector (up to 128Mbps downlink)
- One power connector with a single 5V input power supply (compatible 4.5-9V)
- Operating average power consumption : < 2 W @25°C
- Up to 6 full resolution frame per second in burst mode, 1.5 full resolution frame per second in continuous mode through Space- Wire
- Integrated temperature sensors
- Wide Angle Objective
- >80° Field of View (edge to edge)
- 7.9 mm fixed focal length
- 61 cy/mm sensor side from 1m to infinity
- Mechanical enclosure
- 86x72x69 mm3
- 376g
Description
The 3DCS4M 4MPixels 8mm focal length space camera is a complete vision camera system for space applications, such as monitoring and navigation for spacecrafts and landers.
Applications
- Platform and Payload Monitoring
- Navigation & Docking
- Rendezvous
