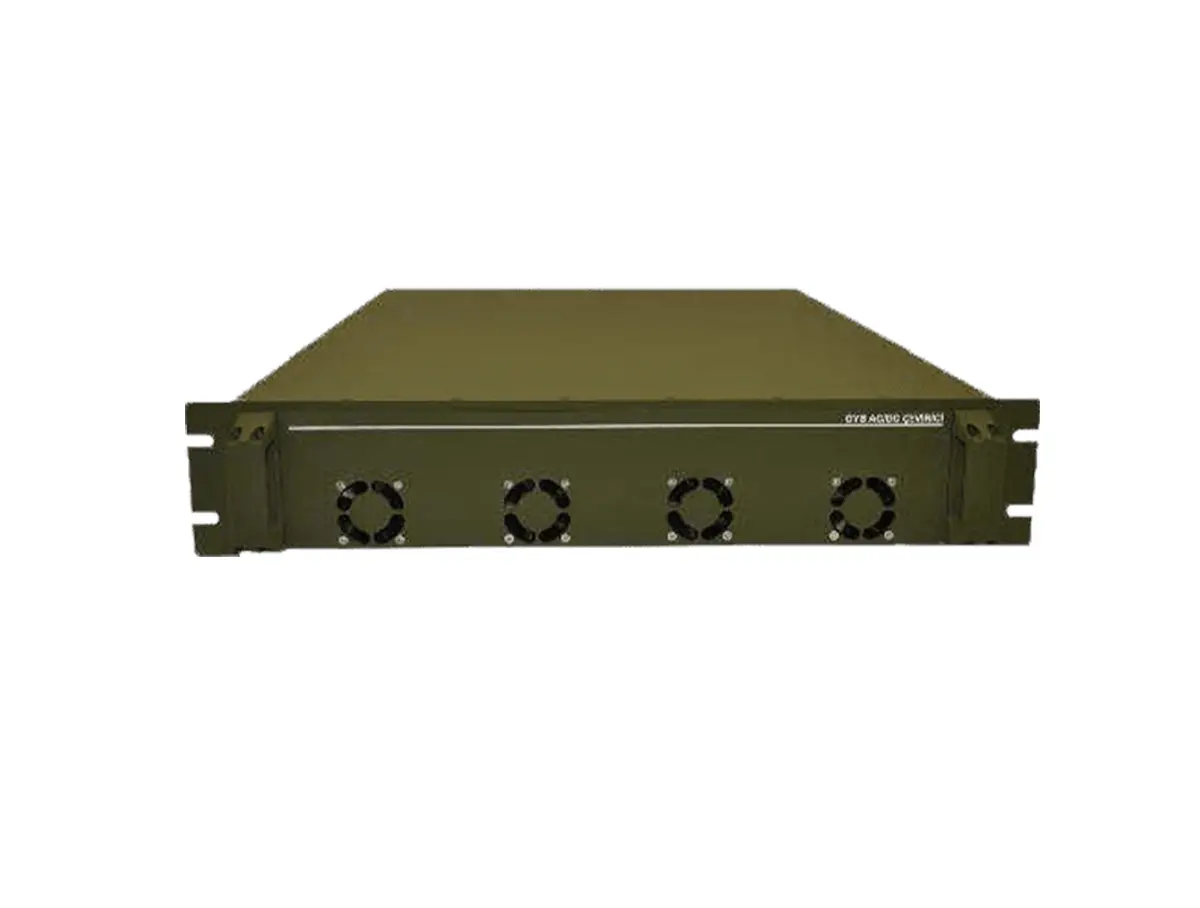

Universal Three Phase AC-DC Power Supplies

Category: Brand:
  • Three phase 90-265 VAC input, optional 300 VAC continuous
  • Input Frequency: 47-63 Hz
  • Can be configured as a power supply & battery charger
  • High efficiency, high power density
  • Power Factor Correction
  • IP67 sealed
  • RS-485 communication
  • Input UV/OV protection
  • Output OV protection
  • Output short-circuit protection
  • Over temperature protection

Ordering Information

  • Family: KMPS04
  • Input Voltage: Single Phase Universal 90-265 VAC
  • Power: 3 kW, 7 kW
  • Output Voltage: 12 VDC, 15 VDC, 28 VDC, 36 VDC, 48 VDC, 270 VDC
  • Package: Enclosed
  • Baseplate: 300 Vac continuous input

Screening

  • Full LOT traceability
  • Optional burn-in testing
  • Temperature cycling
  • Available with different screening grades
  • Final visual inspection

Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings may cause permanent to the device.

  • Operating Temperature: -55 to +100 °C
  • Storage Temperature: -55 to +125 °C

Dimensions

  • Size: 432 x 620 x 88.1 mm (19” rack 2U height)
  • Weight: 24 kg

Description

KMPS04 is a high efficiency and rugged multifunction AC/DC converter unit that can be operated as a power supply unit and a battery charger.

Designed to meet

  • MIL-STD-461 (D, E, F, G)
  • MIL-STD-810
