Sensitron introduces new Next-Gen Multi-Channel SSPC Boards

In the ever-evolving landscape of military technology, the reliability and ruggedness of components, particularly in the area of power management, play an important role. Sensitron’s multichannel solid state power controller cards are already in use in military programs worldwide. Sensitron offers reliable commercial off-the-shelf (COTS) solutions that meet stringent design standards.

With its latest multichannel solid-state power controller, Sensitron now adds a 16-channel card to its catalog, designed for 270 Vdc applications and offering configurable current programming for each channel. The channels of the multichannel SCRs can be grouped together to handle higher current loads, and system status and measured parameters are accessible via a serial communications interface (CAN/RS485). The board also supports user-created application software that can be run with Sensitron’s factory software.

Features and Benefits of the Multi-Channel SSPC Cards and Power Distribution Units

NEW: Programmable 16-Channel SSPC Board for 270Vdc Applications

• Sixteen individual channels programmable 1A to 10A per channel
• Total current capability up to 150 amps
• 270 Vdc, compliant to MIL-STD-704F
• CAN bus communications interface

NEW: SiC Based Programmable 4-Ch SSPC for 600Vdc Applications

• Four individual channels, programmable 5A to 50A per channel
• Total current capability up to 200 amps
• Ideal for 600Vdc applications
• Features a controlled turn-on pre-charge function to limit inrush current, and a fail-safe high voltage interlock interface input

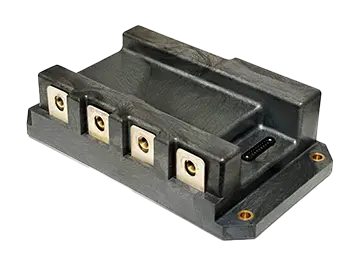

Multi-Channel SSPC Enclosure Units, Diamondback or Boa Series, MIL-STD-1275E Compliant

• Highest current smart power module in the industry
• 1 or 2 4-Channel cards (Boa Series)
• 1 or 2 16-Channel cards (Diamondback Series)
• 1 or 2 32-Channel cards (Diamondback Series)
• 32-Channel, 28 Vdc Bus
• 16-Channel, 270Vdc Bus
• Design and production capability

The features of the multichannel solid-state power controllers make them ideal for high-power environments, particularly where efficient power distribution and monitoring are essential. For more information and detailed technical specifications, please visit our special information site about Next-Gen Multi-Channel SSPC Cards and Power Distribution Units from Sensitron or the Sensitron website.
